Compact LTE cellular modem with USB-C, eSIM and 1GB data plan included

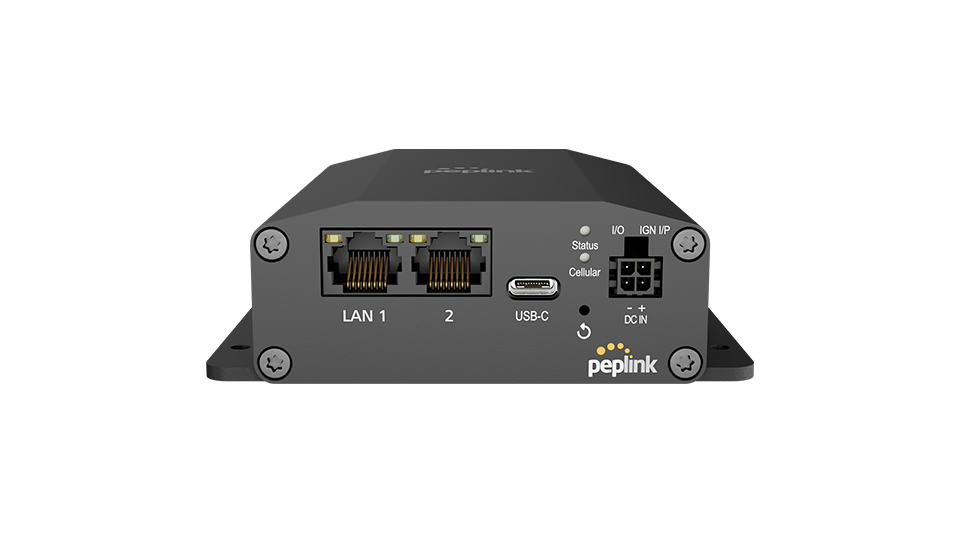

The Peplink MAX Adapter is the simplest way to add cellular connectivity to anything that wants an Ethernet or USB-C uplink. Embedded CAT-4 LTE modem, 2x Gigabit Ethernet, 1x USB-C (LAN, GPIO, ignition sensing, or power), and a metal vent-less case rated -30 to +65°C. Ships with 1 GB of Peplink's eSIM data plan pre-loaded so it's online the moment you plug it in. Compact enough to clip into a dashboard, mount in a server rack, or run from a power bank in a backpack.
What it's actually for
Three core use cases. First: cellular failover for non-cellular routers and home gateways. Plug the Adapter's Ethernet output into a Balance, B One, B One Plus, or any third-party router as a backup WAN. The Adapter handles the cellular link, the router handles the failover logic. Second: standalone cellular for IoT and remote equipment. Plug it into the device's Ethernet, give the device a SIM, walk away. Third: in-vehicle deployments where you need cellular but don't want a full mobile router. The 9-36V DC input handles vehicle power directly, the USB-C alternative input runs from a power bank or USB-C laptop charger for portable kit.
The 1 GB eSIM data plan is unlocked at first boot through InControl 2 (Peplink Global Single Device plan, valid 6 months). Add more eSIM data through the same console, drop in a physical SIM, or BYO eSIM with your own provider. Flexibility is the whole point.

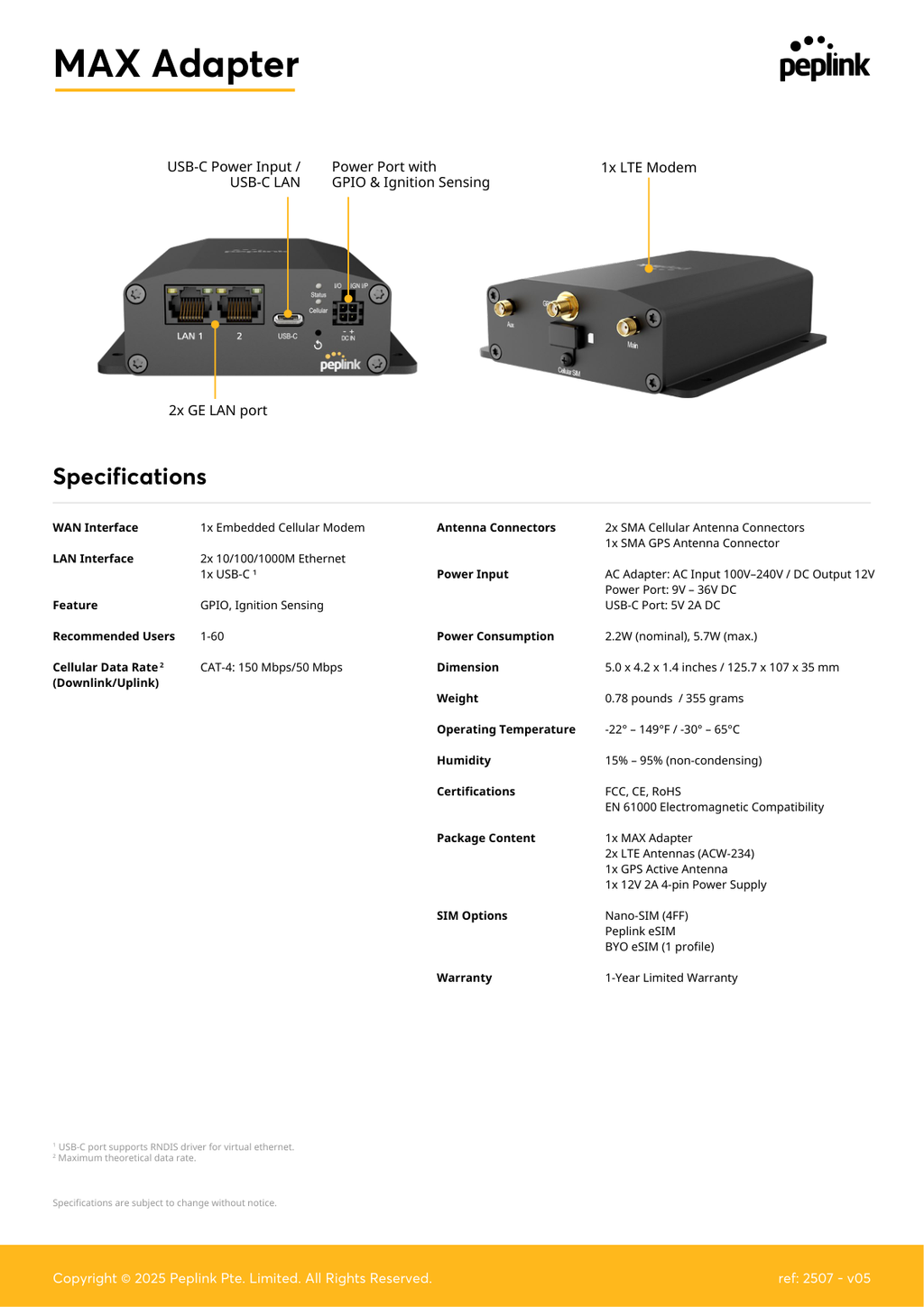

Specifications
| Feature | Specification |
|---|---|
| Cellular | 1 x embedded CAT-4 LTE modem (downlink up to 150 Mbps, uplink up to 50 Mbps) |
| Ethernet | 2 x 10/100/1000M Gigabit (LAN) |
| USB-C | 1 x USB-C with LAN, GPIO, ignition sensing |
| SIM options | Built-in eSIM (1 GB Peplink Global Single Device plan included), BYO eSIM, physical SIM tray |

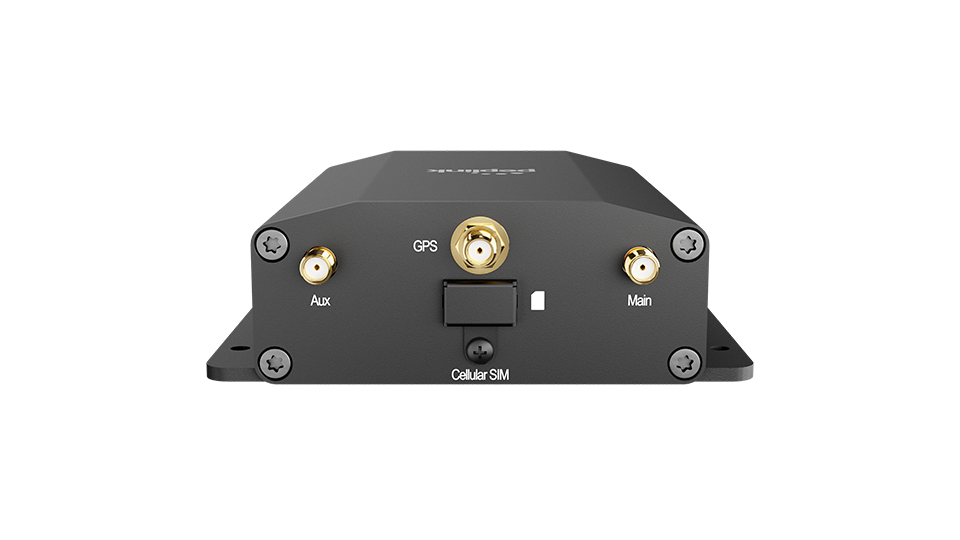

| Antenna connectors | 2 x SMA cellular |

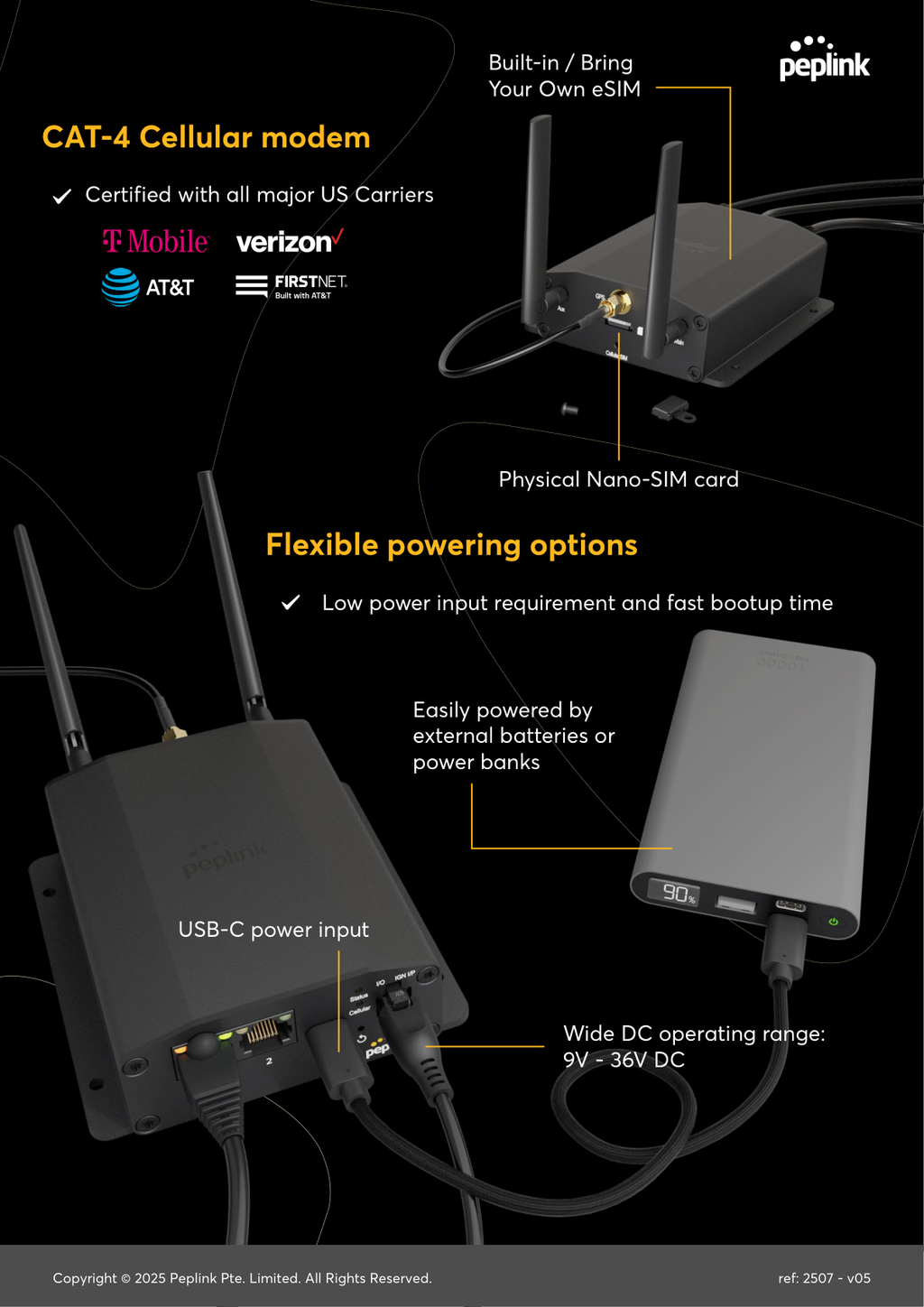

| Power input | 9-36V DC; USB-C alternative input |
| Power consumption | Low; suitable for power-bank operation |
| Recommended users | 1-60 |
| Operating temperature | -30 to +65°C |
| Enclosure | Metal, vent-less |
| Dimensions | 127 x 107 x 35 mm, 360 g |
| Certifications | FCC, CE, RoHS |
| Warranty | 1-year limited |
Where it fits
The MAX Adapter is the right call for SOHO routers needing LTE failover without buying a new main router, for unmanned IoT or telemetry kit needing a managed cellular link, for vehicle dashcam and fleet monitoring add-ons, for engineer kit bags as a portable hotspot replacement that's actually managed by InControl 2. We've shipped these into 24/7 ATM monitoring, into agricultural sensor networks, into emergency response vehicles as a tertiary cellular path. The wide DC input range (9-36V) is the giveaway: this is hardware designed to be deployed places, not just sit on a desk.
What's in the box
- 1 x Peplink MAX Adapter LTE
- 1 x DC power adapter (9-36V)
- 2 x cellular antennas (SMA)
- 1 x mounting bracket
- Quick start guide
Note: 1 GB of Peplink Global eSIM data is included and activated through InControl 2 on first boot. Plan is valid for 6 months from activation.
FAQ
What's the difference between the MAX Adapter LTE and the new 5G Adapter? The MAX Adapter LTE (this listing) is CAT-4 4G LTE, smaller, USB-C powered, and substantially less expensive. The 5G Adapter (ADP-5GZ-T-PRM) is a newer, higher-spec product with 5G NR and a larger package. Pick the LTE Adapter for failover, IoT, and low-bandwidth use cases. Pick the 5G Adapter when you need raw cellular throughput as the primary link.
Can I use it as a primary internet source? Yes, for low to moderate bandwidth use (1-60 users on basic web, email, VoIP, light video). For high-bandwidth primary use over cellular, look at a full MAX BR1 Pro 5G or BR2 LTE.
Does it work with non-Peplink routers? Yes. The Ethernet output is a standard WAN connection. Plug it into any router that has a WAN port and the router treats the Adapter as if it were a cable modem.
Can I run it from a USB-C power bank? Yes. The USB-C power input draws low enough current that a standard USB-C 5V/3A power bank will run the Adapter for hours. Useful for kit bags, temporary deployments, and engineering site visits.
Does the included eSIM work in the UK? Yes. The Peplink Global Single Device plan covers the UK and most of EMEA / APAC. After the 1 GB / 6 months runs out, top up through InControl 2 or switch to a physical SIM or BYO eSIM.
Does it support InControl 2? Yes, fully. InControl 2 manages firmware, eSIM provisioning, GPIO and ignition triggers, traffic stats, and remote diagnostics. Free with the Adapter for 1 year (PrimeCare).
Peplink Gold Partner support
The Tech Factory ships the MAX Adapter LTE EU globally from our supply chain. Free UK delivery over £500. International orders welcomed. Talk to our engineering team if you need help integrating it with an existing router fleet, planning eSIM data tariffs, or sizing a tertiary cellular failover path for a multi-site deployment.
